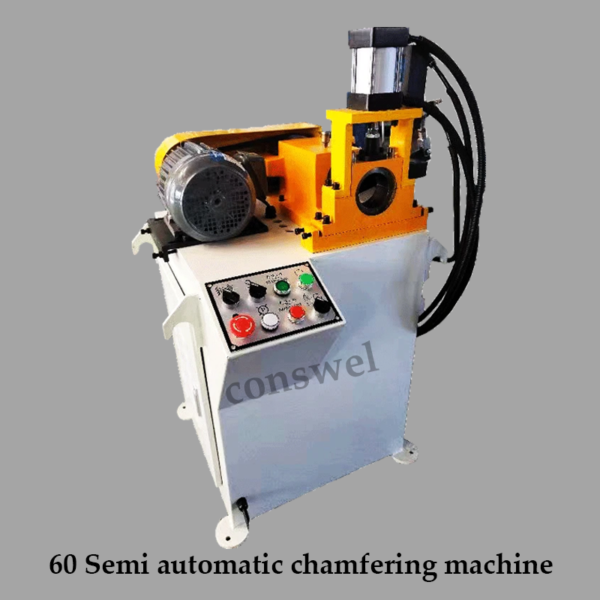

Semi-automatic chamfering machine is a mechanical equipment used for chamfering the edge of workpieces. The following is a detailed introduction for you:
Performance characteristics:
Easy to operate:
Only some operations such as loading, fixing workpieces and starting equipment need to be completed manually. No complex programming or professional skills are required. After simple training, you can start to operate.
High processing accuracy:
It can ensure a certain chamfering accuracy by adjusting the tool and related parameters to meet the needs of most industrial production.
Strong adaptability:
It can adapt to chamfering of workpieces of different materials (such as metal, plastic, etc.), different shapes (such as round tubes, round bars, flat plates, etc.) and different specifications by replacing tools and adjusting parameters.
High cost performance:
Compared with fully automatic chamfering machines, its price is relatively low and the equipment cost is low; at the same time, it has higher processing efficiency and stable quality than manual chamfering machines, which is suitable for small and medium-sized enterprises or enterprises with small production scale.
| Model | 60DT – Q | 80DT – Q/Y | 120DT – Y |
| Machining diameter range (pipe) | Φ6 – 60mm, Wall Thickness ≤ 4mm | Φ10 – 80mm. Pneumatic: Wall Thickness ≤ 4mm; Hydraulic: Wall Thickness ≤ 10mm | Φ20 – 120mm. Pneumatic: Wall Thickness ≤ 5mm; Hydraulic: Wall Thickness ≤ 12mm |
| Machining diameter range (bar) | Φ6 – 30mm | Φ10 – 30mm | Φ20 – 120mm |
| Processing length | Over 50mm | Over 50mm | Over 60mm |
| Motor specification | 220V Single – phase (Custom – made), 380V Three – phase (Standard), 0.75kw Motor | 380V Three – phase (Standard), 1.5kw Motor | 380V Three – phase (Standard), 2.2 / 4.0kw Motor |
| Suitable material | Copper Pipes, Iron Pipes, Aluminum Pipes | Steel Pipes, Copper Pipes, Iron Pipes, Aluminum Pipes, Stainless Steel Pipes | Steel Pipes, Copper Pipes, Iron Pipes, Aluminum Pipes, Stainless Steel Pipes |
| Spindle speed | 800 – 1400rpm | 800 – 1400rpm | 650 – 1000rpm |
| High speed 1400rpm | Aluminum Pipes, Red Copper Pipes | Aluminum Pipes, Red Copper Pipes | Aluminum Pipes, Red Copper Pipes |
| Low speed 800rpm | Steel Pipes, Iron Pipes, Hard Copper Pipes, Stainless Steel Pipes | Steel Pipes, Iron Pipes, Hard Copper Pipes, Stainless Steel Pipes | Steel Pipes, Iron Pipes, Hard Copper Pipes, Stainless Steel Pipes |
