Laser tube cutting machine is a kind of equipment that uses laser beam to cut and process tubes. The following is an introduction to you from multiple aspects:
Equipment advantages
High cutting accuracy:
narrow cutting seam, generally around 0.1 – 0.5mm, positioning accuracy can reach ±0.05mm, repeated positioning accuracy can reach ±0.03mm, can achieve fine cutting, smooth cutting surface without burrs, small heat-affected zone, minimal local deformation of workpiece, no mechanical deformation.
High cutting efficiency:
fast cutting speed, can be adjusted according to the material and thickness of the tube, cutting speed can reach several meters or even tens of meters per minute, and can be formed in one time without excessive subsequent processing.
Good processing flexibility:
can complete a certain length of tube cutting, drilling and cutting of any shape of geometric figures on a machine tool, can process round tubes, square tubes, rectangular tubes, special-shaped tubes (such as channel steel, angle steel, I-beam, etc.), and can also cut various complex figures on the surface of the tube.
Non-contact cutting:
the laser cutting head will not contact the surface of the material, will not scratch the workpiece, and ensure the surface quality of the tube.
Strong material adaptability:
It can cut almost any metal pipe of any hardness, such as steel, stainless steel, aluminum, alloy steel, aluminum alloy, copper, silver, gold, titanium, etc. without deformation.
Cost saving:
No mold is required, and the material can be tightly fitted through visual nesting, saving materials; advanced technology helps to speed up the development of new products and recover the equipment investment cost faster.

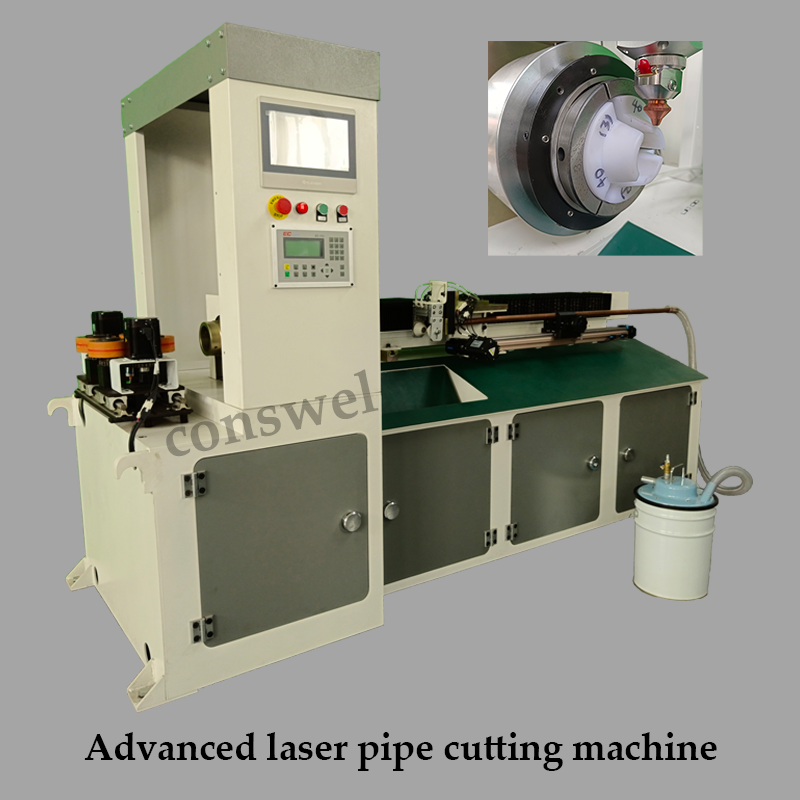

Serial Number | Name | Specification | Model |
1 | Main Structure | Box – type | Feed from the right – hand side and discharge from the left – hand side when facing the equipment |
2 | Head Assembly | Push – forward Pneumatic Chuck | Through – hole diameter: 70mm |
3 | Feed Assembly | Equipped with an automatic follow – up system for the laser head | |
4 | Feeding Assembly | Controlled by a stepper motor | Stepless speed regulation |
5 | Servo Fixed – length Assembly | Length can be set and modified on a touch screen | Fixed – length range: 30 – 2000mm |
6 | Control System | 4 – axis servo control for spindle, positioning, slag removal and follow – up | |
7 | Inovance servo + touch screen | ||
8 | Automatic Feeding Rack | Bundle – type | 100# (6 meters) |
9 | Automatic Cutting – off Device | Remaining tailstock: 30 – 40mm, | Cutting – off headstock: 5 – 10mm |
10 | Automatic Slag Removal Device | Inner diameter of the pipe ≥ 16mm | |
11 | Laser Head | 1500W | Jiaqiang |
12 | Laser Generator | 1500W | Chuangxin |
13 | Water – cooled Machine | 1500W | Teyu |
16 | Overall Dimensions of the Feeding Rack | Length * Width * Height | 6m * 1.2m * 1.3m |
17 | Overall Dimensions of the Main Machine | Length * Width * Height | 3.2m * 1m * 1.8m |
18 | Overall Dimensions of the Final Assembly | Length * Width * Height | 10m * 1.6m * 1.8m |
