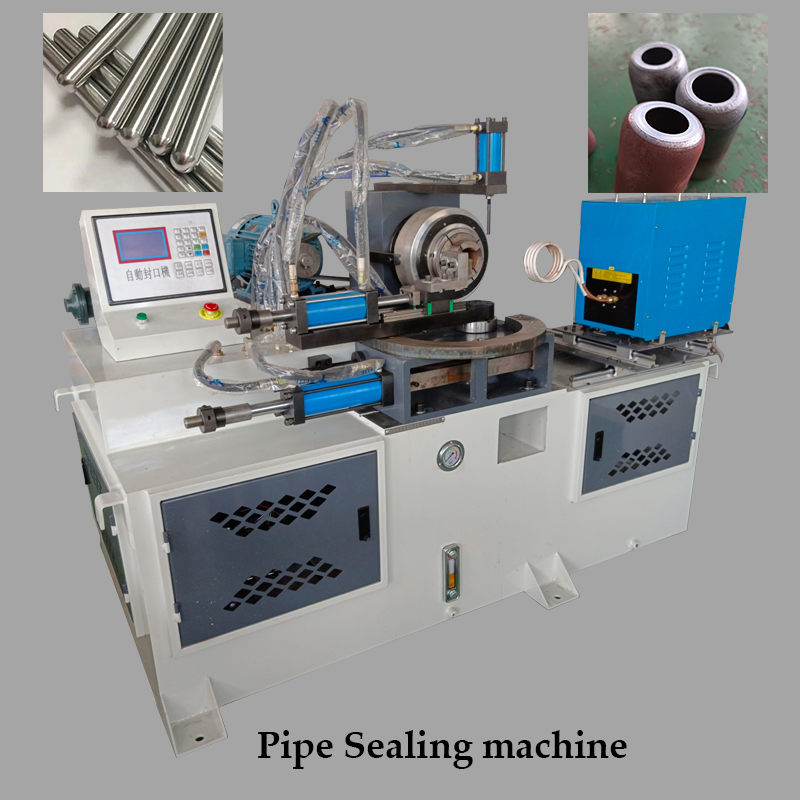

The round tube sealing machine is a device specially used to seal the open end of the round tube. It has important applications in many industries. The following is a detailed introduction:
Working principle
Welding sealing:
Use a high-temperature heat source to melt the metal material at the mouth of the round tube, and seal the mouth by filling welding wire or other methods. For example, high-frequency induction welding, the heat generated by the high-frequency induction current causes the edge of the round tube to heat up and melt rapidly, and the sealing is achieved with the assistance of pressure or welding wire. This method has high sealing strength and good sealing, and is suitable for metal round tubes, such as stainless steel pipes, carbon steel pipes, etc.
Item | Details |
Model | QC – 40NC |
Hydraulic Chuck Brand | Chaoquan, Taiwan |
Hydraulic Chuck Specification | 40 |
Maximum Applicable Pipe | Φ40*2 |
Hydraulic Oil Motor Power | 3kW |
Maximum Hydraulic Pressure | 15Mpa |
Rotary Motor Power | 3kW |
Machine Weight | 900kg |
High – frequency Machine Power | 15kW |
Machine Dimensions | 2000x800x1100mm |
